BITS AND RODS (ALSO MADE TO MEASURE) FOR DRILLS

A wide range of bits with standard diameters or at request, built with a double spiral in the first part where the impact with the ground is heavier, is at the customer's disposal.

There are two types at the customer's disposal :

  • ALLUVIAL SOILS - Bits are equipped with a blade knife up to a diameter of 350 mm, beyond this length bucket type knives are mounted.
  • STONY-ROCKY GROUNDS - Bits are built up with strong screws equipped with teeth holder and interchangeable teeth.

The use of high quality steel with thicker layers guarantees the bit resistance in extreme use conditions.

The drill rods are built up with standard and out of standard measures to satisfy all your requests.


Picks for rock bits and relative bases

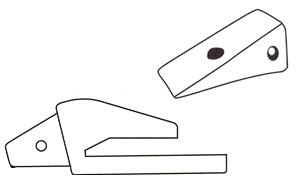

Bucket type knives and relative bases
Enlarge the image

Bits for stony and rocky grounds
( Click on the image to enlarge it )

Enlarge the image
Rock bits
( Click on the image to enlarge it )

Enlarge the image
Bits for drills ready to be delivered
( Click on the image to enlarge it )

Enlarge the image
Bit with BUCKET type knives
( Click on the image to enlarge it )

Enlarge the image
Bit with blade knives

Rods to measure of all sizes are manufactured

    Lengths (L)
mm
ø E
Hexagonal wrench, joint
(CH) mm
1000 1500 2000 3000
80 41/50 11 14 21 / Weight
100 41/50 18 22,5 29,5 41
150 41/50 21,5 32 40 56
200 50/70 27 36 46 68
300 50/70 40 64 82 113
fino a 2000 50/70
